Refrigerated Meat Truck Body with FRP Sandwich Panels

MOQ : 1

Price : 3050

Material : FRP outer and inner skin

Panel Type : Sandwich construction

Insulation Layer : Extruded polystyrene foam

Panel Fixation : High strength adhesive and rivet

Structure : Full close structure

Door Panel : High accuracy process

Sealing Rubber : Imported

Edge Material : Aluminum alloy or stainless steel

Corner Material : Stainless steel or FRP

Hinge/Lock Material : Stainless steel or galvanized

Floor Material : Figured aluminum panel

Weight Reduction : 30-40% lighter

Heat Conductivity : 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane)

Heat Transference : Below 0.3W/M².K

Fire Retardant : B1 level

Contact Now

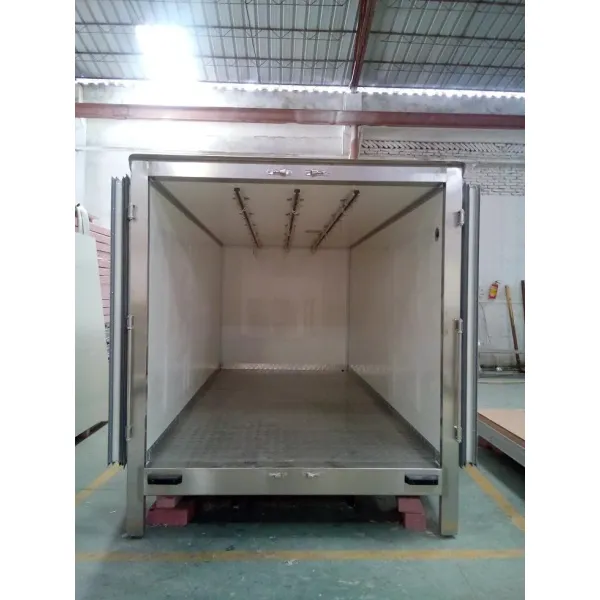

Meat truck body
1.Material & performance
(1)New type FRP was used as outer and inner skin.
(2)The panel used for the van was constructed in type of sandwich. The middle layer of the sandwich is a kind of new type extruded polystyrene foam.which offers a very good thermal insulation performance.
(3)The sandwich panel is fixed to the steel frame with high strength adhesive and rivet.
2. Construction
(1)The van is built in a full close structure. All panels are adhered with high strength structural adhesive to achieve the most reliable conjunction, sealing and insulation properties.
(2)This structure is also easy and fast to be assembled.
3.Specification
(1)The door panel is produced by a high accuracy process with imported sealing rubber to keep good airtight and thermal insulation.
(2)The inside and outside of the van are decorated with special aluminum alloy profiles or stainless steel edge, stainless steel or FRP corner, and stainless steel or galvanized hinge/lock/hanger.
(3)There are protection guardrails in both sides and end of the van. Various lights are installed as well. The whole body is beautiful, harmony, strong, liable and durable.
(4) Reinforced floor design adopts high quality figured aluminum floor panel to ensure the loading capacity, strong and wearing resistant as well as easy to load or unload.

(5) The van can be designed according to customers requirement to select material and design the structure as well as to install refrigerators.

(6) Interior compartments can be made to meet the different requirement of temperature in the same van.

4.Main properties;
(1)Light in weight: 30-40% lighter than domestic traditional products.

(2)Thermal insulation properties: The coefficient of heat conductivity of fiberglass reinforced plastics face panel is about 0.20W/M².K, the coefficient of heat conductivity of hard polyurethane foam is 0.018-0.028W/M².K, and the K #118alue of overall coefficient of heat transference can be below 0.3W/M².K.

(3)Surface properties: Surface of fiberglass reinforced plastics panel possesses very high tensile strength, bending strength and impact ductility. It also possesses excellent chemical stability against rainwater, acid and alkali with low PH #118alue. Therefore, its surface is very smooth, unfading, anti-ultraviolet radiation and easy clearance. Particularly, it is suitable to be used for various carriage advertisements.
(4)Impermeability properties: Both sides of FRP panel possess excellent water impermeability and water resistance.

(5)Fire retardant performance: It conforms to the national standard B1 level.

(6)Service life: 4-6 times longer than domestic traditional products.

(7)Easy maintainability: There is no trace on the panel after repair, which is more competitive than steel and aluminum panels.

(8)Environmental protection properties: There is no volatile and corrodible substance on surface of fiberglass reinforced plastics. And the panels are sandwiched with extruded polystyrene foam plastic without fluorine. It is green environmental protection product.

(9)Refrigerator groups made in USA or German or China can be adopted according to customer's selection to meet different refrigeration property requirement.
Refrigerated Meat Truck Body with FRP Sandwich Panels

Refrigerated Meat Truck Body with FRP Sandwich Panels
